Arvon W Diffuser

Naturally efficient
Features

Type:
1D – Geometric Diffuser

Scattering range:
900 Hz to 6000 Hz

Purpose

– Improving low frequency response

– Flutter echo control

– Specular reflection control

– Enlarging sweet spotArvon.Arvon W Diffuser begins scattering at 900 Hz and goes up to 6000 Hz, providing a more uniform sound field through mid and high frequency diffusion. Made of wood from a sustainable source, and available in 4 colours, Arvon has a furniture grade quality, becoming an exquisite diffuser that will fit nicely in your home cinema or living room. Optimised through an Artnovion design technique, you can carry 2 units per box by clicking them into each other, and fitting them together as a single unit.

Artnovion product 34 arvon diffuser b6fbdaddbc

PerformanceScattering coefficient / Absorption Coefficient

Artnovion product arvon w diffuser 0dcbc9993f

Exquisite performance, quality and design.

100% Natural Wood

Recommended for

– Hi-Fi Listening Room

– Media Room

– Home CinemaAvailable fire rate:
FG | Furniture Grade

Materials:
– Natural wood | Lacquered wood
– Solid wood

Dimensions | 595x595x78mm

Douro – Diffuser

A wave shaped premium panel
Features

Type:
1D – Geometric Diffuser
Schroeder Optimised curve.

Scattering range:
400 Hz to 5000 Hz

Purpose

– Improving low frequency response

– Flutter echo control

– Specular reflection control

– Enlarging sweet spotDouro.Douro Diffuser is a product designed to provide maximum uniformity to the ambient sound field through high frequency diffusion while the solid wood construction of the unit limits the amount of sound energy that is lost to absorption. The Wave shaped pattern that resembles a tile, guarantees a good diffusion spread. The scattering begins at 400 Hz and offers effective and even diffusion up to 5000 Hz. The premium material used in the manufacturing of this product comes available in 6 colours, matching your preferences and the patterns of your room.

Douro can be used on the front, back, or side walls of your room, as well as ceilings. This premium product is available in a wood finish or in lacquered colours. Seamless tiling in both directions.

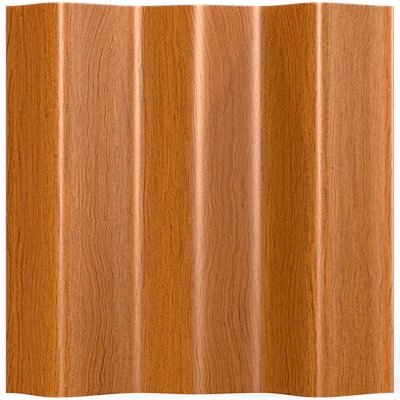

Artnovion product 33 douro diffuser ee11fe0360

PerformanceScattering coefficient / Absorption Coefficient

Artnovion product douro w diffuser fcf2d82bcd

A wave shaped premium panel.

Optimised curve.

Recommended for

– Hi-Fi Listening Room

– Media Room

– Home CinemaAvailable fire rate:
FG | Furniture Grade

Materials:
– Natural wood veneer | Lacquered HMDF
– HMDF and plywood structure

Dimensions | 595x595x83mm

Lagos – Diffuser

A high performance bidirectional QRD diffuser

PreviousNext

Features

Type:
1D – QRD Diffuser

Scattering range:
350 Hz to 6000 Hz

Purpose

– Improving low frequency response

– Flutter echo control

– Specular reflection control

– Enlarging sweet spotLagos.Lagos is the result of extensive research into diffusion techniques – it is based on a traditional QRD diffuser, but combine varying widths with each cell depth, overcoming some of the limitations of the standard QRD diffuser.

The phase grating surface of the diffuser is designed to provide a more uniform sound field through mid-high frequency diffusion. The well depths are individually tuned to enhance performance at certain frequencies, essentially increasing the effective range of the panel, without compromising the overall linear response – Lagos performs 15-20% lower with a linear frequency response.

The panels’ semi-cylindrical response pattern makes it the perfect solution for multichannel rooms and can easily be installed in specific arrays to provide 2D diffusion. Lagos is available in both wood and fabric finishes, making it a versatile solution to match your performance and design requirements.

Artnovion product 614 lagos w diffuser clone 4c41a9fcee

PerformanceScattering coefficient / Diffusion Average / Absorption Coefficient

Artnovion product lagos w diffuser 25b32cec21

Perfect diffusion control.

Recommended for

– Hi-Fi Listening Room

– Media Room

– Home CinemaWhy use diffusion?
Diffuser panels scattering incoming sound waves into smaller, lower energy waves, scattered over a large area. These scattered reflections create a homogeneous sound field distribution and a full, balanced acoustic response. This improves speech intelligibility, music quality, and creates a more uniform, larger sweet spot.

Available fire rate:
FG | Furniture Grade

Materials:
– Natural wood veneer | Lacquered HMDF
– HMDF and plywood structure

Dimensions | 595x595x60mm

Integrated fixing system – panel can be rotated 90º to any orientation.

Lagos is designed to be used with other Artnovion products, with the same thickness as our standard absorbers once installed. Lagos is hung on screws, and can be installed on any surface, in any orientation.

Lagos F- Diffuser

A high performance bidirectional QRD diffuser.

PreviousNext

Features

Type:
1D – QRD Diffuser

Scattering range:
350 Hz to 6000 Hz

Purpose

– Improving low-frequency response

– Flutter echo control

– Specular reflection control

– Enlarging sweet spotLagos F Diffuser.Lagos Fabric is the result of extensive research into diffusion techniques – it is based on a traditional QRD diffuser, but combine varying widths with each cell depth, overcoming some of the limitations of the standard QRD diffuser.

The phase grating surface of the diffuser is designed to provide a more uniform sound field through mid-high frequency diffusion. The well depths are individually tuned to enhance performance at certain frequencies, essentially increasing the effective range of the panel, without compromising the overall linear response – Lagos performs 15-20% lower with a linear frequency response.

The panels’ semi-cylindrical response pattern makes it the perfect solution for multichannel rooms and can easily be installed in specific arrays to provide 2D diffusion. Using exclusive acoustically transparent fabric. A discreet fabric-covered diffuser that preserves all the functionality of the diffuser, whilst fitting perfectly into a continuous fabric design.

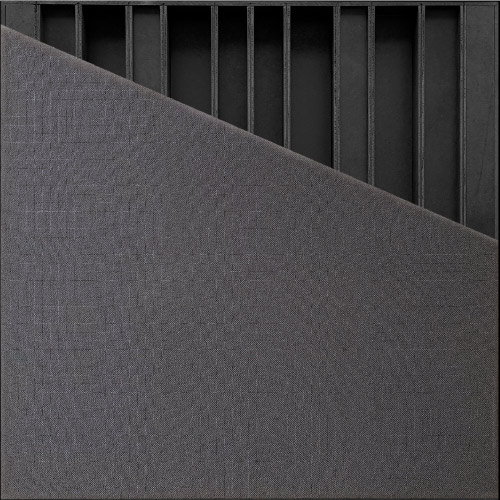

Artnovion product 793 lagos f diffuser 6f15656a0a

PerformanceScattering coefficient / Diffusion Average

Artnovion product lagos f diffuser 09bbc7e12d

Perfect diffusion control

Recommended for

– Home CinemaWhy use diffusion?
Diffuser panels scattering incoming sound waves into smaller, lower energy waves, scattered over a large area. These scattered reflections create a homogeneous sound field distribution and a full, balanced acoustic response. This improves speech intelligibility, music quality, and creates a more uniform, larger sweet spot.

Available fire rate:
FG | Furniture Grade

Materials:
– Acoustic fabric
– HMDF and plywood structure

Dimensions | 595x595x56mm
