Bass Trap | Corner

Absorption coefficient | 1/3 Oct. from 32Hz to 160Hz | 1 Oct. from 250Hz to 8 KHz |

PreviousNext

Features

Type:
T.P.D.A. – Artnovion technology
Tuneable Pistonic Diaphragmatic Absorber

Tuneable absorption range:
57Hz to 82Hz.
Hz-by-Hz fine tuning

Purpose

– Room mode control
– Bass ratio control
– Low frequency RT reduction
– Improving low frequency response
– Reducing low frequency time decayT.P.D.A. Artnovion technology. New fine-tuning possibilities.The Corner bass trap is the latest in low frequency absorption. This elegant panel integrates a tuneable membrane over a sealed volume, containing a high performance acoustic core. A secondary posterior compartment positions a high density velocity core in the high pressure zone of the room. The panel is completely tuneable, by means of an adjustable weighted membrane, allowing to pin-point the performance of the panel to a target frequency.

The panels’ tuneable membrane works in a similar way to a speaker cone, allowing for a much superior – and controlled – performance. A central mass is supported by an elastic membrane – This mass can then be altered to change the resonant frequency of the membrane, stepping the peak performance of the Trap from 57 to 82 Hz.
T.P.D.A. – Artnovion technology

Artnovion product 319 bass trap corner range bc9e98051f

Performance58 Hz to 66 Hz / 67Hz to 69 Hz / 70Hz to 72 Hz / 74Hz to 77 Hz / 78Hz to 82 Hz

Artnovion product bass trap corner range 88189a460c

The very best performance with the best design.

Recommended for

– Vertical Wall Corner
– Small Room Acoustics
– Acoustic pressure zones

– Reducing low frequency time decayThe front of the panels clips into the bass trap body, leaving easy access to the membrane.

The design of these acoustic cores creates a trap with unprecedented performance and unique calibration – Absorbing more – and from a lower frequency – than anything else on the market.

The Corner Bass Trap will be available in all standard panel fronts – following the lines of the previous HP range. The front of the panels clips in to the bass trap body, leaving easy access to the membrane. The panel is installed on wall corners, with a simple cleat system.

Making the most of our new membrane technology employed in the Sub Trap range.

The new membrane brings new fine-tuning possibilities and even more performance than before. It has been redesigned, forgoing the rounded sides to include a new dedicated sealed-cavity Helmholtz resonator at the back – and also elegantly hiding its cleat fixing system.

Sub Trap | Range

PreviousNext

Features

Type:
T.P.D.A. – Artnovion technology
Tuneable Pistonic Diaphragmatic Absorber

Tuneable absorption range: 40 to 60 Hz
– Hz-by-Hz peak absorption tuning
– Triple Pressure acoustic core + Velocity core
– High Efficiency Bass Trap

Purpose

– Room mode control
– Bass ratio control
– Low-frequency RT reduction
– Improving low-frequency response
– Reducing low-frequency time decayT.P.D.A. – Artnovion technology | The ultimate combination of performance and finesse.Low-frequency control is the foundation of acoustic treatment.
Strong modal frequencies can be the make-or-break of many rooms, often uncontrollable without altering room structure.

Enter the Sub Trap – a new approach on low-frequency control – a fine-tuneable device with unprecedented performance.
The Sub Trap is a new category of acoustic treatment, targetting the sub-bass frequency range. It boasts the highest absorption coefficient per volume on the market.
It employs Artnovion’s latest membrane technology – a symbiosis of precision engineering and material science – creating a device that can be precisely calibrate to work at the exact resonant frequency of a space. T.P.D.A.

The Sub Trap is composed of 4 independent cavities – 3 sealed volumed equipped with independent, tuneable diaphragmatic membranes (T.P.D.A.), and an additional acoustic core packed with a high-performance porous absorber (V.A.B.T.). This configuration is designed to bring you the best performance possible, with pressure and velocity sensitive cores exposed to the correct modal areas.

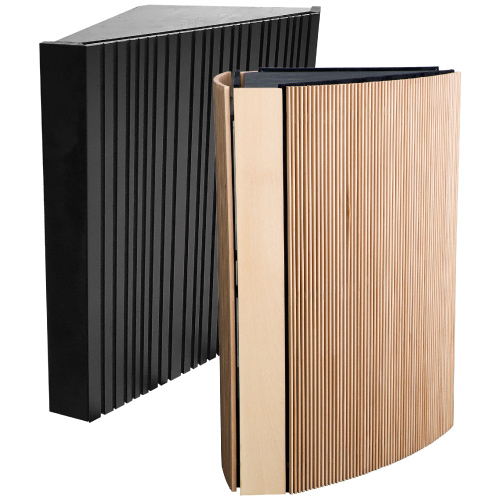

Artnovion product 320 sub trap range 5819e9fce6

Performance38 Hz to 42 Hz / 43Hz to 46 Hz / 47Hz to 50 Hz / 51Hz to 54 Hz / 55Hz to 62 Hz

Artnovion product sub trap range 2d4bdd1f8e

Unique T.P.D.A.Technology.

Recommended for

– Vertical Wall Corner
– Small Room Acoustics
– Acoustic pressure zones

– Reducing low-frequency time decayOutstanding tuneable performance. Issues under 60Hz are common, and can be tricky to solve. Usually structural alterations – such as lowering ceilings, or dedicating huge portions of the room to bass trapping are required.

Here enters the Sub Trap, Artnovion’s latest addition gives you the chance to keep your home as it is – and tune it to exactly what you need – with a panel that attenuate room modes from as low as 40Hz.
The panel takes a new approach on absorption, using a new membrane technology akin to a speaker cone, suspended a calibrated mass on an elastic surround – allowing for a much superior – and controlled – performance. A further feature is the possibility to precisely tune the membrane to resonate at your desired frequency by simply adding or removing mass from the membrane.

The design of these acoustic cores creates a trap with unprecedented performance and unique calibration – Absorbing more, and starting at a lower frequency, than anything else on the market. And that isn’t all – the Sub Trap has 3 of them. T.P.D.A. – Artnovion technology

The Sub Trap can either be installed in corners, or feature as a stand-alone unit.
The exterior of this colossal panel is clad in exquisite hand-crafted wooden grills, available in select finishes.

For more information on TPDA technology, check out our white paper below.

Available fire rates:
FG | Furniture Grade

Material:
– Natural Wood veneer | Solid Wood
– Marine grade plywood structural frame
– Calibrated cell acoustic foam

Range | Dimensions:
Eiger Sub Trap – Corner
– 736x892x437mm

Eiger Sub Trap – Stand Alone
– 736x892x456mm

Siena Sub Trap – Corner
– 736x892x384mm

Siena Sub Trap – Stand Alone
– 736x892x400mm

Bass Trap Wall

Absorption Coefficient

Performance1/3 Oct. from 32Hz to 160Hz | 8 Oct. from 250Hz to 8 KHz

Features

Type:
Pistonic Diaphragmatic Absorber

Absorption range:
80 Hz to 120 Hz

Peak Absorption Frequency:
90 Hz

Purpose

– Room mode control
– Bass ratio control
– Low frequency RT reduction
– Improving low frequency response
– Reducing low frequency time decayMaximum performance, minimum thickness.With a peak absorption from 80 Hz to 120 Hz, the Wall Bass Trap offers an enriched acoustic experience, directly attenuating standing waves. The various front designs available for the Wall Bass Trap allow you to create artistic patterns when mounted on the walls of your home cinema or living room, completely indistinguishable from the Artnovion absorber range.
The Wall Bass Trap – 595 x 1190 – equivalent to 2 standard panels, is equipped with a weighted pistonic membrane enclosing a volume with a high performance acoustic core. This design allows for a precisely tuned, high performance absorption. Bringing you the maximum performance in as least space as possible.

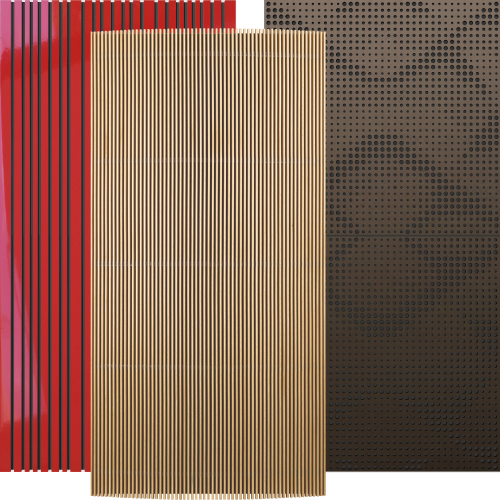

Artnovion product 393 basstrap wall range r hf f1ed9f4a41
Artnovion product bass trap wall range d6e75f346f

Designed to be completely in line with other absorbers.

Recommended for

– Vertical Wall
– Small Room Acoustics
– Acoustic pressure zonesPistonic Diaphragmatic Absorber Pressure Core
High Density velocity Core
Effective in both velocity and pressure modal zones
Maximum performance, minimum thickness.

Available fire rates:
FG | Furniture Grade

Material:
– Acoustic fabric | Natural Wood veener | Lacquered HMDF
– Marine grade plywood structural frame
– Calibrated cell acoustic foam

Range | Dimensions:
Verona – Bass Trap – Wall
– 595x1190x56mm

Komodo – Bass Trap – Wall
– 595x1190x56mm

Kalahari W – Bass Trap – Wall
– 595x1190x64mm

Sahara W – Bass Trap – Wall
– 595x1190x64mm

Siena W – Bass Trap – Wall
– 595x1190x64mm

Eiger W – Bass Trap – Wall
– 595x1190x143mm
