Orion W – Absorber

A distinct acoustic response.

PerformanceAbsorption Coefficient

Features

Type:
Acoustic Absorber

Absorption range:
315 Hz to 3150 Hz

Acoustic Class:
C | (αw) = 0,75

Purpose

– Sweet spot sound field distribution
– RT reductionOrion is the culmination of extensive research into the optimisation of – MLS sequences – for calibrated acoustic absorption.The latest addition to the Pro Audio and studio range.

Orion brings the distinct design of our flagship Logan diffuser to new horizons. An array of Orion absorbers create areas with a distinct acoustic response, each calibrated to work at a certain frequency range.
Using these Helmholtz-style absorption techniques boosts mid-low and mid rage absorption, whilst the open areas of the panel are enough to guarantee high-frequency absorption. Orion is a great technical product, designed for the studio world, where each surface is critical – making sure that you get the best out of your studio. Orion’s performance begins at 315 Hz and offers effective and even absorption up to 3150 Hz.

– Orion is an impressive combination of unique Artnovion acoustic design with high performance acoustical cores.

– Orion absorber panels can be effortlessly installed on walls or ceilings.

Artnovion product 842 orion w absorber cdaf91c21d
Artnovion product orion w absorber clone ca2a5ed654

Unique Artnovion acoustic design with high performance acoustical cores.

Recommended for

– Control Room
– Recording Room
– Home Studio
– Broadcast Studio
– Vocal Booth
– Drum RoomAvailable fire rate:
FG | Furniture Grade

Materials:
– Natural wood | Lacquered HMDF
– Marine grade plywood structural frame
– Calibrated cell acoustic foam (Rear panels’ air cavities)

Dimensions:
Orion – Absorber
– 595x595x58mm
– Equipped with four M6 Screw Thread receiver

Orion Doble – Absorber
– 595x1190x58mm
– Equipped with six M6 Screw Thread receiver

Azteka W – Absorber

A millenary inspiration.

PreviousNext

Features

Type:
Absorber

Absorption range:
315 Hz to 3150 Hz

Acoustic Class:
C | (αw) = 0,7

Purpose

– Sweet spot sound field distribution
– RT reductionAzteka.Azteka acoustic panels were designed to reduce standing waves and preventing them from filtering, drastically improving speech clarity. Azteka’s performance begins at 315 Hz and offers effective and even absorption up to 3150 Hz. Azteka is an impressive combination of unique Artnovion acoustic design with high-performance acoustical cores. Azteka panels can be effortlessly installed on walls or ceilings.

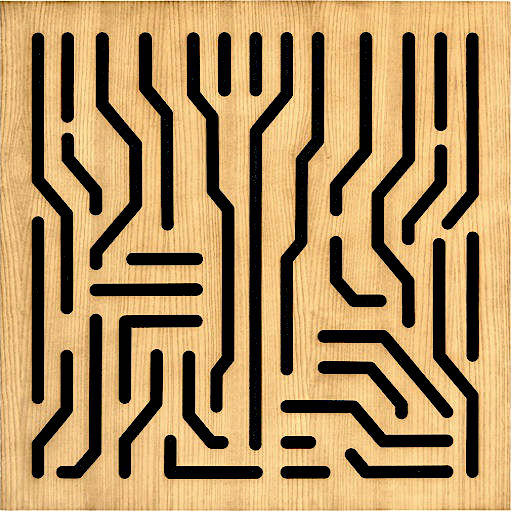

Artnovion product 573 azteka w absorber ae5e310e9f

PerformanceAbsorption Coefficient

Artnovion product azteka w absorber 1e4a6b41dd

A millenary inspiration

Recommended for

– Control Room
– Recording Room
– Home Studio
– Broadcast Studio
– Vocal Booth
– Drum RoomAvailable fire rate:
FG | Furniture Grade

Materials:
– Natural wood | Lacquered HMDF
– Marine grade plywood structural frame
– Calibrated cell acoustic foam

Dimensions:
Azteka – Absorber | 595x595x58mm
– Equipped with four M6 Screw Thread receiver

Azteka Doble – Absorber | 595x1190x58mm
– Equipped with six M6 Screw Thread receiver

Athos W – Absorber

An Artnovion signature panel.

PreviousNext

Features

Type:
Absorber

Absorption range:
250 Hz to 4000 Hz

Acoustic Class:
C | (αw) = 0,7

Purpose

– Sweet spot sound field distribution
– RT reductionAthos.Athos is a high-performance panel, designed to counteract reflections, concentrating on mid-high frequencies, while it’s sleek surfaces and perforation also provide selective scattering over high frequencies, combining both effects in this distinct design. Available in a selection of lacquered and wood finishes, and in FG and FR+ Fire rates.

This striking panel is a prime example of signature Artnovion design.

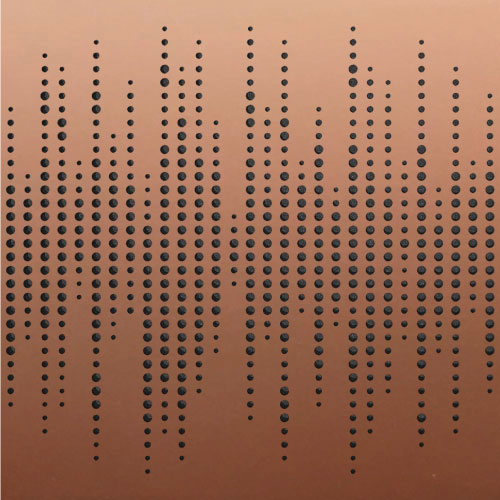

Artnovion product 558 athos w absorber 1596cb016e

PerformanceAbsorption coefficient

Artnovion product athos w absorber 718f107cd5

An Artnovion signature panel

Recommended for

– Control Room
– Recording Room
– Home Studio
– Broadcast Studio
– Vocal Booth
– Drum RoomAvailable fire rate:
FG | Furniture Grade

Materials:
– Natural wood | Lacquered HMDF
– Marine grade plywood structural frame
– Calibrated cell acoustic foam

Dimensions:
Athos – Absorber | 595x595x58mm
– Equipped with four M6 Screw Thread receiver

Athos Doble H – Absorber | 1190x595x58mm
– Equipped with six M6 Screw Thread receiver

Avalon Flow | Hybrid Absorber-Diffuser

Flowing parametric design

PreviousNext

Features

Type:
Hybrid Absorber-Diffuser

Absorption Range:
250 Hz to 5000 Hz

Acoustic Class:
B | (αw)=0,75

Purpose

– RT reduction

– Flutter echo control

– Reducing excessive reverberation

– Improving speech intelligibilityAvalon Flow.Avalon turns a simple panel into a pattern that flows along the walls, morphing and unfolding according to your point-of-view.
Avalon is a parametric hybrid absorber, tying high-performance absorption and diffusion, creating the perfect wall-to-wall solution. Avalon is formed using a combination of 5 different modules, that can be arranged to create countless personalized designs.
Avalon is available in 2 natural wood finishes, and a selection of 7 acoustic fabrics.

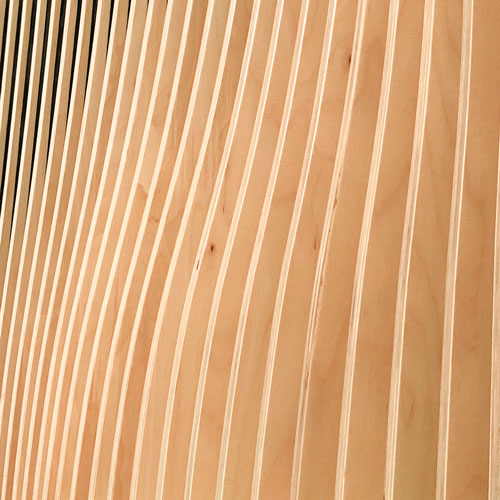

Artnovion product 317 avalon flow c256737d2c

PerformanceAvalon I , II , III , IV / Avalon V

Artnovion product avalon flow bbef8c0762

A high-performance acoustic core with a carefully calibrated diffuser design

Recommended for

– Hi-Fi Listening Room

– Media Room

– Home Cinema

– Living RoomThis highly efficient and sustainable Avalon Flow can be easily mounted on walls and ceilings.
Combines Absorption and diffusion.

Available fire rate:
FG | Furniture Grade

Materials:
– Natural wood veneer | Lacquered HMDF
– Marine grade plywood structural frame
– Calibrated cell acoustic foam

Range | Dimensions:
Avalon Flow I | 595x595x110mm

Avalon Flow II | 595x595x110mm

Avalon Flow III | 595x595x110mm

Avalon Flow IV | 595x595x110mm

Avalon Flow V | 595x595x45mm

Siena W Absorber

Hybrid Powerhouse

PreviousNext

Features

Type:
Absorber

Absorption Range:
315 Hz to 5000 Hz

Acoustic Class:
B | (aw) = 0,8

Purpose

– RT reduction

– Flutter echo control

– Reducing excessive reverberation

– Improving speech intelligibilitySiena.Siena boasts the highest absorption rate for a wooden absorber on the market.
Designed using a slatted QRD sequence over a high-performance acoustic core, this is a true powerhouse of a panel, that controls and distributes incoming sound waves, to help create a perfectly balanced sound field.
Siena Absorber is a timeless acoustic panel with a natural touch, available in a range of wooden and lacquered finishes.

Artnovion product 23 siena w absorber 8c937d05a1

PerformanceAbsorption coefficient

Artnovion product siena w absorber e4cf5f3055

The perfect balance between quality and design

Recommended for

– Hi-Fi Listening Room

– Media Room

– Home Cinema

– Living RoomAvailable fire rate:
FG | Furniture Grade

Materials:
– Natural wood veneer | Lacquered HMDF
– Marine grade plywood structural frame
– Calibrated cell acoustic foam

Range | Dimensions:
Siena – Absorber | 595x595x66mm
– Equipped with four M6 Screw Thread receiver

Siena Doble V – Absorber | 595x1190x66mm
– Equipped with six M6 Screw Thread receiver

Siena Doble H – Absorber | 1190x595x66mm
– Equipped with eigth M6 Screw Thread receiver

Verona – Absorber 2.0

An acoustics inspired pattern with a 3D effect.

PreviousNext

Features

Type:
Absorber

Absorption Range:
315 Hz to 3150 Hz

Acoustic Class:
C | (aw) = 0,7

Purpose

– RT reduction

– Flutter echo control

– Reducing excessive reverberation

– Improving speech intelligibilityVerona.Verona is a wooden fronted absorber panel, tuned to work in the mid-frequency range. Focusing absorption on this range of the frequency spectrum is critical to achieve good speech intelligibility and sound field distribution.
The panel’s unique pattern renders a 3D effect on its surface, allowing you to arrange them in several designs, creating a distinguished ambience in your room.

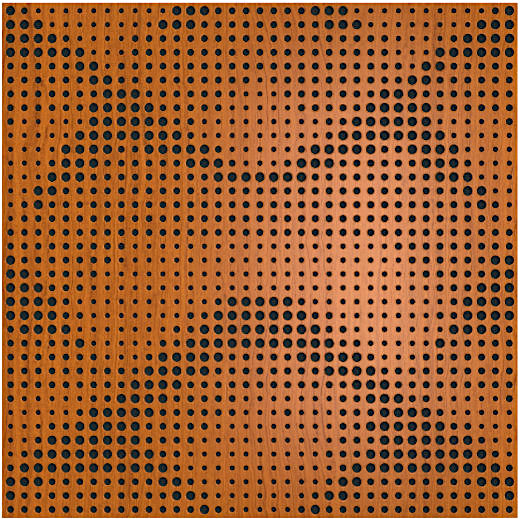

Artnovion product 27 verona w absorber 99385ed033

PerformanceAbsorption coefficient

Artnovion product verona w absorber c052f96b45

An acoustics inspired pattern with a 3D effect

Recommended for

– Hi-Fi Listening Room

– Media Room

– Home Cinema

– Living RoomAvailable fire rate:
FG | Furniture Grade

Materials:
– Natural wood veneer | Lacquered HMDF
– Marine grade plywood structural frame
– Calibrated cell acoustic foam

Range | Dimensions:
Verona – Absorber | 595x595x58mm
– Equipped with four M6 Screw Thread receiver

Verona Doble V – Absorber | 595x1190x58mm
– Equipped with six M6 Screw Thread receiver

Galan | Hybrid Absorber-Diffuser

A high-performance acoustic core with a carefully calibrated diffuser design.

PreviousNext

Features

Type:
Hybrid Absorber-Diffuser

Absorption range:
125 Hz to 8000 Hz

Acoustic Class:
A | (αw): 0,95

Purpose

– Sweet spot sound field distribution
– RT reductionGalan.Galan is a new line of hybrid panels – combining a high-performance acoustic core with a carefully calibrated diffuser design. This dual functionality breaks away from the old-school parameters of acoustic design, creating new paths to solve excessive reverberation and uneven sound fields.
The acoustic cores are formed by strategically interwoven acoustic foam with Helmholtz resonators, layered over an encompassing sealed air cavity. The parallel slats diffuse incoming waves, creating a uniform reflection pattern and homogenous sound fields. All tweaked to pack the most performance in the minimum space possible.
The most striking facet of this panel is the design possibilities. The panels parametric design turns simple panels into a pattern that flows along the walls, morphing and unfolding according to your point-of-view.
Made from a selection of wood and lacquered finishes, with a range of secondary interior colours, the Flow range opens a world of acoustic treatment to a whole new dimension of possibilities.

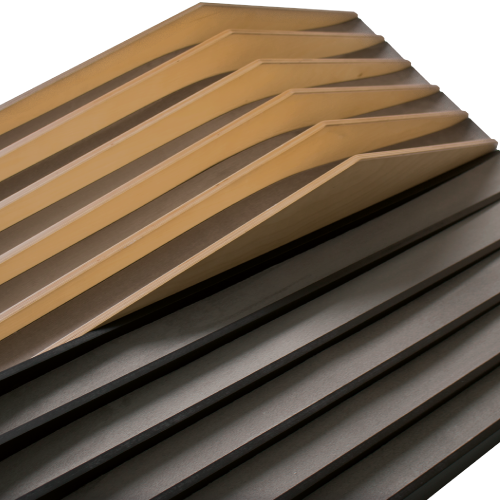

Artnovion product 318 galan 4f2aacba4e

PerformanceAbsorption coefficient

Artnovion product galan 1d69479f6c

A high-performance acoustic core with a carefully calibrated diffuser design

Recommended for

– Control Room
– Recording Room
– Home Studio
– Broadcast Studio
– Vocal Booth
– Drum RoomAvailable fire rate:
FG | Furniture Grade

Materials:
– Acoustic fabric
– Natural wood | Lacquered HMDF
– Marine grade plywood structural frame
– Calibrated cell acoustic foam

Dimensions:
Galan | 1190x297x175mm
Galan Dimi | 595x297x175mm

Sahara W – Absorber

Sahara is the first of a new league of acoustic treatments.

PreviousNext

Features

Type:
Absorber

Absorption Range:
350 Hz to 4000 Hz

Acoustic Class:
C | (aw) = 0,7

Purpose

– RT reduction

– Flutter echo control

– Reducing excessive reverberation

– Improving speech intelligibilitySahara.Sahara panels are the forerunners of the next generation of acoustic panels. Completely adaptable. Completely customizable. Unique for each environment. A good acoustic treatment lies in the correct ratio between absorption and diffusion. Sahara can regulate both, without changing its seamless organic pattern, allowing you to fully embrace the architectural style of your space without worrying about different panel placement.

Artnovion product 98 sahara w absorber 07f45caa17

PerformanceAbsorption coefficient

Artnovion product sahara w absorber 451b98f3e7

A panel tailor-made to your needs

Recommended for

– Hi-Fi Listening Room

– Media Room

– Home Cinema

– Living RoomAvailable fire rate:
FG | Furniture Grade

Materials:
– Natural wood veneer | Lacquered HMDF | Solid wood
– Marine grade plywood structural frame
– Calibrated cell acoustic foam

Range | Dimensions:
Sahara – Absorber | 595x595x66mm
– Equipped with four M6 Screw Thread receiver

Sahara Doble V – Absorber | 595x1190x66mm
– Equipped with six M6 Screw Thread receiver

Sahara Doble H – Absorber | 1190x595x66mm
– Equipped with eight M6 Screw Thread receiver

Kalahari W – Absorber

A blend of technology, design and performance

PerformanceAbsorption coefficient

Features

Type:
Absorber

Absorption Range:
350 Hz to 4000 Hz

Acoustic Class:
C | (aw) = 0,75

Purpose

– RT reduction

– Flutter echo control

– Reducing excessive reverberation

– Improving speech intelligibilityKalahari.Kalahari is a high performance acoustic absorber, crafted from wood using the same patented Artnovion technology that brought about the Sahara panel.
Kalahari has an elegant tessellated pattern, designed to meld seamlessly across rooms. Kalahari is especially efficient at refection control, providing valuable scattering along with absorption.
The Kalahari absorber is available In a selection of sizes in lacquered and metallic finishes, available in 2 sizes in 2 orientations.

Kalahari’s secret lies in its organic pattern, allowing you to increase the absorbative areas and change the morphology of the diffusing ridges, producing a panel truly tailor-made to your needs.

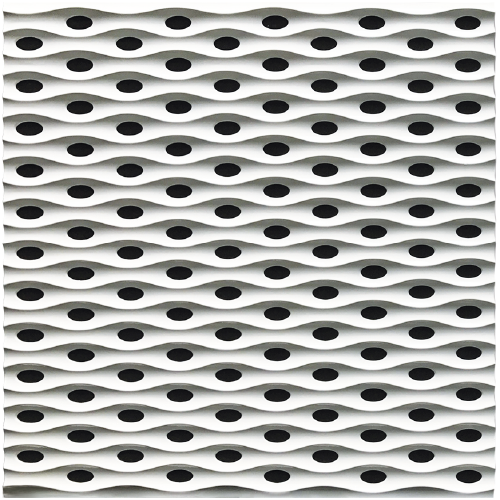

Artnovion product 194 kalahari w absorber d570071ad3
Artnovion product kalahari w absorber 5e0223f88b

A blend of technology, design and performance.

Recommended for

– Hi-Fi Listening Room

– Media Room

– Home Cinema

– Living RoomAvailable fire rate:
FG | Furniture Grade

Materials:
– Lacquered HMDF
– Marine grade plywood structural frame
– Calibrated cell acoustic foam

Range | Dimensions:
Kalahari – Absorber | 595x595x66mm
– Equipped with four M6 Screw Thread receiver

Kalahari Doble V – Absorber | 595x1190x66mm
– Equipped with six M6 Screw Thread receiver

Kalahari Doble H – Absorber | 1190x595x66mm
– Equipped with eight M6 Screw Thread receiver

Komodo W Absorber

Control the heart of sound.

PreviousNext

Features

Type:
Absorber

Absorption Range:
315 Hz to 3150 Hz

Acoustic Class:
C | (aw) = 0,7

Purpose

– RT reduction

– Flutter echo control

– Reducing excessive reverberation

– Improving speech intelligibilityKomodo.Komodo absorber is an innovative wooden panel with an acoustically optimised perforation pattern that plays with sound radiation, offering reflection and reverberation control.
Komodo is tuned to work at mid-range frequencies, making it an effective tool for optimizing speech intelligibility whilst contributing to the perceived spaciousness of a room.

Artnovion product 29 komodo w absorber 903d14ce7f

PerformanceAbsorption coefficient

Artnovion product komodo w absorber 636ee459a5

A decorative and innovative absorber

Recommended for

– Hi-Fi Listening Room

– Media Room

– Home Cinema

– Living RoomAvailable fire rate:
FG | Furniture Grade

Materials:
– Natural wood veneer | Lacquered HMDF
– Marine grade plywood structural frame
– Calibrated cell acoustic foam

Range | Dimensions:
Komodo – Absorber | 595x595x58mm
– Equipped with four M6 Screw Thread receiver

Komodo Doble V – Absorber | 595x1190x58mm
– Equipped with six M6 Screw Thread receiver
